Encoder Series: HR526

Part #: HR5260200B330

List Price: (USD)$1,032

Average Leadtime5 Business Days

Add to Cart

Request a Quote

High volume price discounts available upon request. Contact Us for Volume Pricing

Technical Data

Description

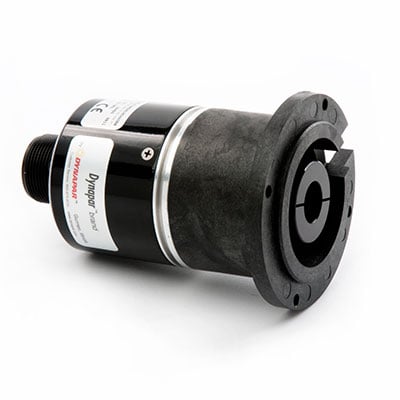

The Series HR26 is designed for rugged industrial applications. The integral shaft coupling and mounting flange allows it to be installed on the end of a motor or shaft assembly without the addition of a bracket or coupling.

General Attributes

Feedback Type

Incremental
Mounting Configuration

Flange Adapter without Pilot
Technology Sensing Type

Optical
Weight (Pounds)

3

Mechanical Attributes

Connection Location

Axial
Connection Type

Connector
Disk Material

Mylar
Flange Material

Aluminum
Maximum Operating Speed (RPM)

10000
Shaft / Bore Material

Stainless Steel
Shaft / Bore Size (mm)

9.525
Shaft Type

Shafted
Termination

10 Pin MS

Electrical Attributes

Duty Cycle

45-55%
Incremental Signal Format

Format A: A Leads B CCW; Index Width (180°) Gated to B'
Incremental Signals

A, A', B, B', Z, Z'
Input Voltage

5-26 VDC
Line Driver Type

7272
Maximum Frequency Response (KHz)

100
Output Signal

5 VDC
Resolution (PPR)

200
Reverse Polarity Protection

Yes
Short Circuit Protection

Yes

Environmental Attributes

Hazardous Area Rating

[None]
Hazardous Area Rating Certification

[None]
Housing Protection Level

IP54
Humidity Non-Condensing (%)

98
Maximum Operating Temperature (°C)

70
Maximum Storage Temperature (°C)

90
Minimum Operating Temperature (°C)

0
Minimum Storage Temperature (°C)

-40
Noise Immunity Testing Specification

EN61326-1
Shock Resistance

50G, 11msec
Vibration Resistance

20G, 5-2000Hz
