Servo Motor Encoders

The use of servo motor has been growing rapidly as a viable alternative to pneumatic, hydraulic, and some electromechanical forms of motion and positioning control. Servo motors with servo encoders units have been used in a variety of applications, including robotics, XYZ tables, factory automation, and related precision control operations in production facilities worldwide.

In the fiercely competitive servo motor market, OEMs are driven by cost efficiency and prefer electronic motion control and servo encoder feedback solutions for their integration ease that provide high efficiency, small size, and high torque technology at an attractive price.



Dynapar standardized and customized brand motor mount servo encoders and servo resolvers are reliable, affordable and extremely compact in size to enable production personnel to monitor critical motor speed and position parameters within their motion control and production applications. Accurate motor speed tracking ensures optimum machine performance and operation designed to prevent motor burnout, or worst case, costly machine shutdown.

Feedback Essentials White Paper  Encoders or Resolvers? How to Choose the Right Feedback Option Download Now

Recommended Encoders for Servo Motors:



Because of its simple transformer design and lack of on-board electronics, resolvers are ideal for high temperature environments. The Size 15 Frameless Resolver offers up to 200C temperature rating.



AD35

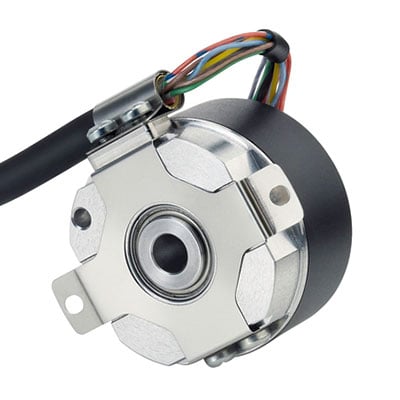

AD35 Single Turn Absolute Servo Encoder

The AD35 absolute encoder’s short mounting depth allows for installation in tight motor endbells. With up to 10,000 RPMs, this encoder is suited for high speed servo motor applications.



F15F15 Incremental Servo Encoder

Size 15 Incremental Servo Encoder with Flex Servo Ring for easy installation. Short mounting depth with +/-2.5º Arc-Min accuracy, ideal for high performance servo motors.
