Encoder Series: ISW38
Part #: ISW3840961J70
Part #: ISW3840961J70
List Price: (USD)$2,229
Average Leadtime5 Business Days
Technical Data
Description

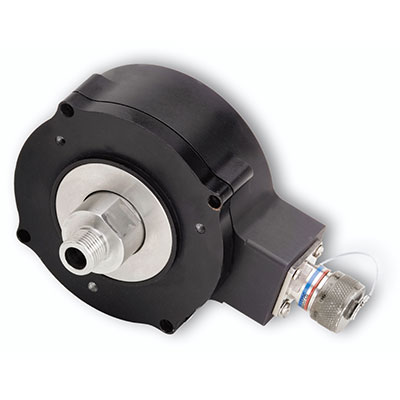

The ISD38 Series is designed for Extreme Duty applications. This robust encoder features a double-sealed housing that allows applications where regulatory wash-down or caustic chemicals are present. It can operate in high shock and vibration environments and is an Intrinsically Safe version, hazardous location certified, when used with the appropriate IS Barrier.
General Attributes
-
Feedback TypeIncremental
-
Technology Sensing TypeOptical
-
Weight (Pounds)5.3
Mechanical Attributes
-
Connection LocationRadial
-
Connection TypeConnector
-
Disk MaterialAluminum
-
Flange MaterialPowder Coated Aluminum
-
Maximum Operating Speed (RPM)6000
-
Shaft / Bore Material300 Series Stainless Steel
-
Shaft / Bore Size (mm)25.4
-
Shaft TypeShafted
-
Special Shaft Feature1"-14 UNS Male x 1"-14 UNS Female
-
Starting Torque (Ncm)3.18
-
Termination10 Pin + Mating
Electrical Attributes
-
Duty Cycle45-55%
-
Incremental SignalsA, A', B, B'
-
Input Voltage7-26 VDC
-
Line Driver Type7272
-
Maximum Frequency Response (KHz)125
-
Output Signal7-26 VDC
-
Resolution (PPR)4096
-
Reverse Polarity ProtectionYes
Environmental Attributes
-
Approvals / Certifications[ATEX, CE, IECEx, ROHS, UL Certified]
-
Hazardous Area Rating[Class I, Div 1, Class I, Div 2, Zone 0, Zone 1, Zone 2]
-
Hazardous Area Rating Certification[Class I, Div 1 Groups C&D, Ex ia op is IIB T4 Ga]
-
Housing Protection LevelIP67
-
Humidity Non-Condensing (%)98
-
Maximum Operating Temperature (°C)100
-
Maximum Storage Temperature (°C)100
-
Minimum Operating Temperature (°C)-40
-
Minimum Storage Temperature (°C)-40
-
Noise Immunity Testing SpecificationEN61326-1
-
Shock Resistance400G, 6msec
-
Vibration Resistance20G, 5-3000Hz
