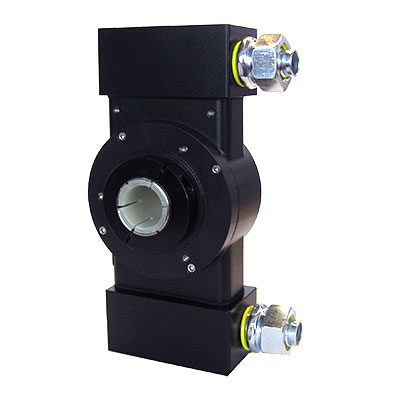

Encoder Series: HSD35D2

Part #: HSD351024H47D2

List Price: (USD)$2,186
Average Leadtime5 Business Days
Add to Cart
Request a Quote
High volume price discounts available upon request. Contact Us for Volume Pricing
Technical Data
Description

The DIV II version of the HSD35 is a specialized version of the industry best vector motor encoder. This HSD35 design has been modified for the special requirements presented in HAZ LOC applications. The anti rotation tether and terminal strip are optimized to allow for easy installation and long service life.

General Attributes
  • Feedback Type
    Incremental
  • Technology Sensing Type
    Optical
  • Weight (Pounds)
    4.9
Mechanical Attributes
  • Connection Location
    Radial
  • Connection Type
    Conduit Box
  • Disk Material
    Aluminum
  • Fixing
    4-1/2" C-face tether + cover
  • Flange Material
    Powder Coated Aluminum
  • Housing Material
    Powder Coated Aluminum
  • Maximum Operating Speed (RPM)
    6000
  • Shaft / Bore Material
    Aluminum
  • Shaft / Bore Size (mm)
    25.4
  • Shaft Type
    Hollow Shaft
  • Special Shaft Feature
    Electrically Isolated Shaft
  • Starting Torque (Ncm)
    7.77
  • Termination
    Pluggable Screw Terminals Inside Terminal Box with 1/2" Conduit Connector
Electrical Attributes
  • Duty Cycle
    45-55%
  • Incremental Signals
    A, A', B, B', Z, Z'
  • Input Voltage
    5-26 VDC
  • Line Driver Type
    7272
  • Maximum Frequency Response (KHz)
    125
  • Output Signal
    5-26 VDC
  • Resolution (PPR)
    1024
  • Reverse Polarity Protection
    Yes
  • Short Circuit Protection
    Yes
Environmental Attributes
  • Approvals / Certifications
    [CE, ROHS, UL Certified]
  • Hazardous Area Rating
    [Class 1 Div 2, Class 2 Div 2]
  • Hazardous Area Rating Certification
    [Class 1, Div 2 Group A,B,C&D, Class 2, Div 2 Group F&G]
  • Housing Protection Level
    IP67
  • Humidity Non-Condensing (%)
    98
  • Maximum Operating Temperature (°C)
    85
  • Maximum Storage Temperature (°C)
    100
  • Minimum Operating Temperature (°C)
    -40
  • Minimum Storage Temperature (°C)
    -40
  • Noise Immunity Testing Specification
    EN61326-1
  • Shock Resistance
    400G, 6msec
  • Vibration Resistance
    20G, 5-3000Hz
Downloadable Resources
Download 3D Model HSD351024H47D2 Datasheet
