Encoder Series: E14H

Part #: E1401000M214

List Price: (USD)$782
Average Leadtime5 Business Days
Add to Cart
Request a Quote
High volume price discounts available upon request. Contact Us for Volume Pricing
Technical Data
Description

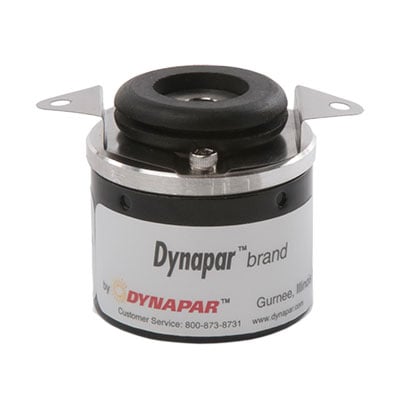

The Dynapar brand Series E14 Hub Shaft encoder is designed for easy installation on motor or machine shafts. Its hub shaft design and flexible spring mount eliminate the need for a mounting flange adapter and flexible coupling. This not only reduces the encoder’s depth, but also lowers installation cost.

General Attributes
  • Feedback Type
    Incremental
  • Mounting Configuration
    Size E14
  • Technology Sensing Type
    Optical
  • Weight (Pounds)
    1
Mechanical Attributes
  • Connection Location
    Radial
  • Connection Type
    Pigtail Cable
  • Disk Material
    Glass
  • Flange Material
    Aluminum
  • Housing Material
    Aluminum
  • Maximum Operating Speed (RPM)
    5000
  • Shaft / Bore Material
    Stainless Steel
  • Shaft / Bore Size (mm)
    15.875
  • Shaft Type
    Hub Shaft
  • Starting Torque (Ncm)
    0.64
  • Termination
    15 ft Cable
Electrical Attributes
  • Duty Cycle
    45-55%
  • Incremental Signal Format
    A Leads B CW viewed from Shaft end of Encoder
  • Incremental Signals
    A, B
  • Input Voltage
    12 VDC
  • Line Driver Type
    7272
  • Maximum Frequency Response (KHz)
    100
  • Output Signal
    12 VDC
  • Resolution (PPR)
    100
Environmental Attributes
  • Housing Protection Level
    IP54
  • Humidity Non-Condensing (%)
    98
  • Maximum Operating Temperature (°C)
    70
  • Maximum Storage Temperature (°C)
    70
  • Minimum Operating Temperature (°C)
    0
  • Minimum Storage Temperature (°C)
    -25
Downloadable Resources
Download 3D Model E1401000M214 Datasheet
