Part #: AD34/1214AU.0NSGB

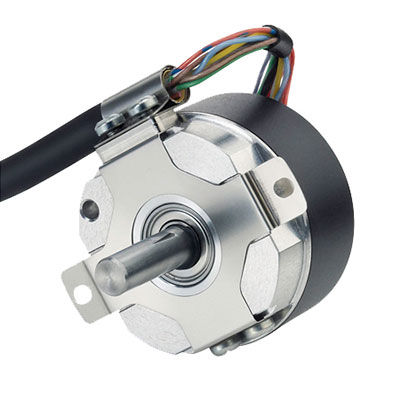

The AD 34 is the most compact absolute encoder in its performance class. It is available with a resolution of up to 19 bits single-turn and 12 bits multi-turn. The mechanical concept is based on a shaft assembly mounted in dual ball-bearings with a flexible torque support. Thanks to its innovative shaft assembly system, the AD34 saves time when configuring the motor shaft. Just a simple 6 mm central bore in the "B" end of the motor shaft is sufficient. The notched shaft of the AD34 is press-fitted in the "B" end of the motor shaft in a single operation. The BiSS or SSI communication interface enables control circuits to be set up that are completely digital.
