HDN58 Non-Contact Position Sensor

58mm OD Rugged Non-Contact Sensor Designed to Offer Encoder Resolution in a Prox Sensor Package

  • Non-Contact Magnetic Sensor Uses Target Magnet to Detect Rotation
  • Incremental, Analog and Absolute Outputs Available
  • Sealed and Encapsulated Electronics with IP69K Option
  • Wide Sensing Envelope Tolerant to Misalignment
HDN58-non-contact-position-sensor

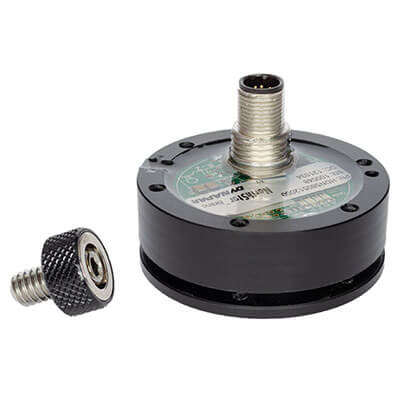

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

The disc-shaped HDN58 is perfect for those speed monitoring and positioning applications where compact size, non-contact functioning is needed. Encapsulated electronics and delrin housing make it ideal for harsh wash-down applications.

General
Feedback Type
Incremental
Technology
Magnetic
Mounting Configuration
Shaftless mounting with "Hockey Puck" body and Target Magnet
Mechanical
Encoder Size (Flange)
>2.5"
Hollow Bore Size
1/2"-1 1/2" Bore Nylon Collars
Housing Material
Plastic
Max. Operating Speed
3,000 RPM
Electrical
Resolution
1-512 PPR
Supply Voltage
6-32VDC
Interfaces
DLD 7272, Push-Pull
Environmental
Protection Class (IP)
IP67 or IP69K
Approvals / Certifications
CE, ROHS
Operating Temperature Range
-30ºC to 80ºC
Storage Temperature
-25ºC to 70ºC
Environment
Non-Hazardous
Industries
Factory Automation
Off Highway Vehicle
Applications
Spreaders
Pay-out reels
Augers
Conveyors Lifts
Articulation arms
Crane booms
