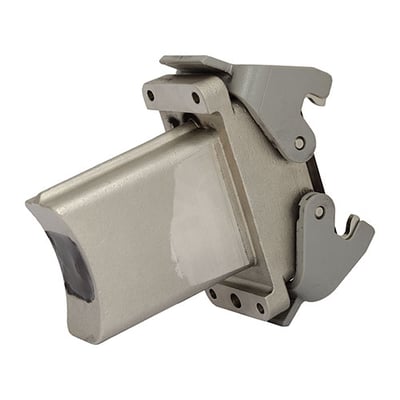

NSRT | Replacement Sensors for NorthStar RIM Tach Encoders

Field replacement sensor modules for Next Generation NorthStar RIM Tach  magnetic encoder families

  • Replaceable stainless steel sensor modules
  • Largest non-contact sensing gap available on the market
  • Encapsulated surface mount electronics
  • Utilizes DC power from +5 to +26V
  • Provides transient and noise suppression
  • Reverse polarity protection
  • Active LED Indicator with Diagnostics




Resolution (pulses per revolution) 60 to 2,400 PPR
Input Power Requirements 5-26 VDC, 95mA (typical per sensor module, plus line driver load)
Output Signals:  IC-WE Differential Line Driver: 150mA, sink or source

Mechanical and Environmental

Number of Output Modules: Single or Dual
Sensor Module Material: Stainless Steel

10 pin industrial duty latching, sealed NEMA 4 &12, IP65. Optional MS3102 10 pin, Pigtail Cable, or Latching connector on cable extension

Operating Temperature: -40°C to 100°C

For additional information including resolution and configuration options, please see datasheet


The NorthStar NSRT Replacement Sensors provide field replaceable options for all Nex Gen NorthStar RIM Tach magnetic encoder families. Having the ability to replace just the sensor of the encoder reduces downtime related to motor disassembly. It is also much less expensive to replace a sensor than an entire encoder.

All sensors feature stainless steel module housing, wide non-contact sensing gap, encapsulated surface mount electronics and reverse polarity protection.

The Nex Gen sensors also provide an active LED indicator with diagnostics, allowing a visual indication of encoder health.
