Upgrade kits allow easy transition to next generation NorthStar RT8 and RT1 sensors providing improved durability, resolution and performance.
Resolution (pulses per revolution) | 60 to 2,400 PPR |
Input Power Requirements | 5-26 VDC, 95mA (typical per sensor module, plus line driver load) |
Output Signals: | IC-WE Differential Line Driver: 150mA, sink or source |
Mechanical and Environmental
Number of Output Modules | Single or Dual |
Bore Sizes: |
5/8” to 2-7/8” (RIM Tach 8500/RT8) |
Connector: |
10 pin industrial duty latching, sealed NEMA 4 &12, IP65. Optional MS3102 10 pin, Pigtail Cable, or Latching connector on cable extension |
Shaft Speed |
7,000 RPM, max. |
Operating Temperature: | -40°C to 100°C |
For additional information including wheel sizes, resolution and mounting, please see datasheet

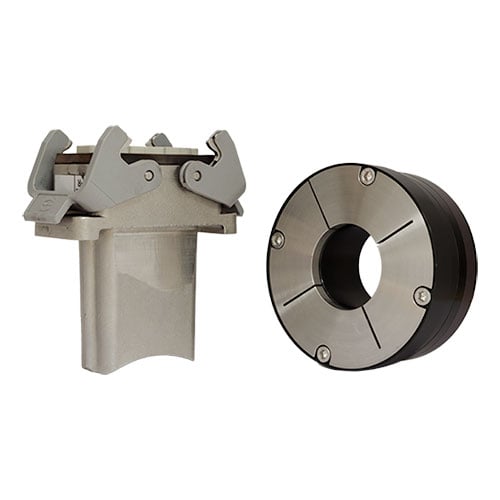

The NorthStar NRTK Wheel and Sensor Upgrade Kits allow easy transition of legacy NorthStar RIM Tach 8500 and 1250 models into next generation NorthStar RT8 and RT1 magnetic encoders. The next generation sensors offer wider sensor to wheel air gap allowing for easy installation and alignment. The wider air gap also translates into improved durability and long term performance. The next generation wheel offers protective magnetic edge guards which also improves the durability of the pulse wheel.
