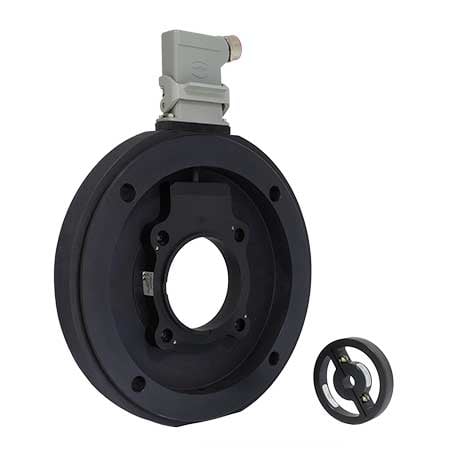

NorthStar SLIM Tach ST1250 Bearingless Magnetic Encoder

Next Generation of the Heavy Duty NorthStar SL1250 upgraded with the latest sensor, wider air gap and on-board diagnostics

Key Features:

Next Generation of the Heavy Duty NorthStar SL1250 upgraded with the latest features.

Redesigned Using Our Revolutionary Sensor Technology to Provide a Large Air Gap of 0.060”

Redesigned Circuitry for On-Board Diagnositcs with LED and Alarm Output

Bearingless Design Mounts to 250-C Face Motors and Requires only 1.1” of Motor Shaft

Anodized Aluminum Housing with Field-Serviceable Connector

Single or Dual Isolated Outputs Available

Standard Operating Characteristics
Pulses per Revolution:	64-2048 PPR
Electrical
Input Voltage Requirement:	5-26 Volts DC
Mechanical
Mounting Configuration:	4.5” 56C face mount for NEMA MG1 standards
Housing Material:	Aluminum
Environmental
Operating Temperature Range:	Standard: -40° to +100°C Optional Extended:-40° to +120°C
