    NorthStar™ Brand RIM Tach™ HS85 Magnetic Hollow Shaft Encoder

    Magnetic Encoder with Max Bore 4-1/2" Hollow-Shaft Mounting Designed to Survive Tough Environments

    • Hollow-shaft Design Mounts Easily to Large Motor Shafts, up to 4.5” in Diameter
    • Magneto-Resistive Technology with Removable On-The-Fly Sensor Modules
    • Multiple Bore Sizes Available, Including Tapered Shafts
    • Stainless Steel and Ductile Cast Iron Construction

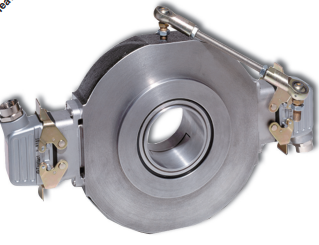

    HS85 Image

    Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

    This product has been discontinued and replaced by the RIM Tach HT85 Magnetic Encoder.
    Please view HT85 page or consult factory for a replacement.

    • Technical Data
    • Accessories
    Description

    The NorthStar™ brand RIM Tach™ HS85 is a mill duty, digital tachometer that accommodates large thru-shaft sizes (up to 4.5 inches or 115mm) and can easily mount to most AC or DC fan cooled motors. This digital tachometer offers the reliability, resolution, and flexibility characteristics for which NorthStar products are known.

    General
    Feedback Type
    Incremental
    Technology
    Magnetic
    Mounting Configuration
    Hollow Bore, direct mount over shaft with Rod style tether
    Mechanical
    Encoder Size (Flange)
    >2.0"
    Hollow Bore Size
    1 1/8"-4 1/2"
    Housing Material
    Cast Iron/Stainless Steel
    Max. Operating Speed
    3,600 RPM
    Electrical
    Resolution
    60-1200 PPR
    Supply Voltage
    5-15VDC, 15-26VDC
    Interfaces
    DLD 4428
    Environmental
    Approvals / Certifications
    CE, ROHS
    Operating Temperature Range
    -20ºC to 70ºC
    Storage Temperature
    -40ºC to +120ºC
    Environment
    Non-Hazardous
    Industries
    Pulp & Paper
    Steel Mills
    Vector Motor
    Applications
    Motor and Drive Speed Feedback
    Extruders
    Pickling Equipment
    Processing Equipment
    Paper Machines
    Test Stands
