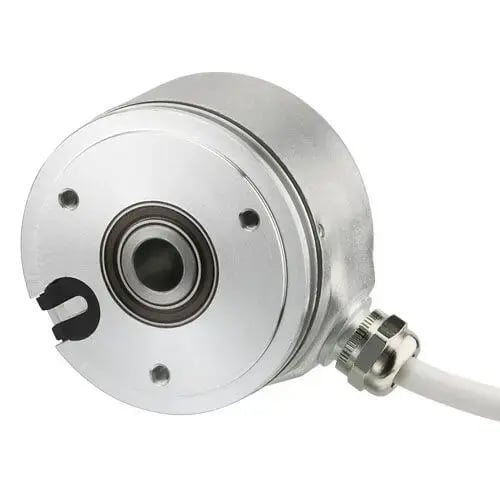

ICURO RI58 Incremental Encoder Series

Flexible Encoder for Motion Systems

Universal industrial rotary encoders
Up to 40,000 steps with 10,000 lines
High degree of signal accuracy
Ingress protection up to IP67
Fits most applications due to many flange and connection options
Suitable for high shock loads
Typical fields of application are machine tools, CNC axes, Packaging machines, Motors/ drives, Injection moulding machines, Sawing machines
For EX applications, see RX 70-71
Operating temperature up to 100°C (RI 58-T)

Technical Data
Accessories

Description

The universally applicable industrial incremental encoders in the RI58 family are characterized by being particularly flexible. There are a number of different versions offering a range of flanges and connections. These encoders are suitable for high shock loads and feature high signal accuracy and up to 40,000 steps with 10,000 marks and are particularly well suited to use in machine tools, CNC axes, packaging machines, motors / drives, injection molding machines and sawing machines.

Mechanical

Shaft Type

Hub shaft, Solid shaft, Through hollow shaft

Shaft Diameter

6 mm, 7 mm, 8 mm, 9.52 mm, 10 mm, 12 mm, 12.7 mm, 14 mm, 15 mm

Electrical

Interface

Push-Pull, Push-Pull Complementary, RS422

Environmental

Protection Class (IP)

IP40, IP50, IP64, IP65, IP67

Approvals / Certifications

CE, c UL us (listed)
