HD20 Hazardous Duty Encoder

Compact 2.0" OD Intrinsically Safe Encoder with ATEX Certified Output Options

  • Size 20 Hazardous-Duty Encoder with Single or Dual Isolated Outputs
  • ATEX, UL and IECEx Certified for Hazardous Duty Applications
  • Unbreakable Code Disc up to 9,000 PPR
  • Special Housing and Seals for IP67 Rating
  • Anodized Aluminum, Stainless Steel, or Nickel Plated Housing

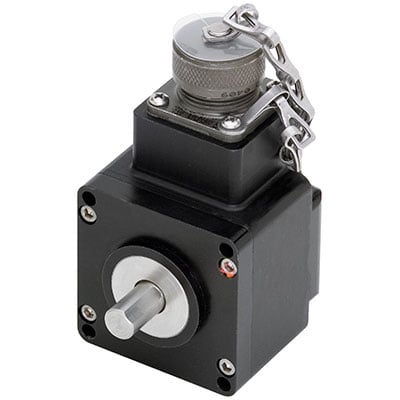

HD20-hazardous-duty-encoder

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

The HD20 Hazardous duty optical encoder is ideal for machine applications with corrosive environments that also require an intrinsically safe encoder (when combined with a barrier). This compact Hazardous area encoder offers stainless steel housing option, is IP67 rated and is ATEX, UL and IECEx certified for hazardous locations.

General
Feedback Type
Incremental
Technology
Optical
Mounting Configuration
2" Square Flange, 4 Thru-holes
Mechanical
Encoder Size (Flange)
2.0"
Hollow Bore Size
3/8", 10mm
Shaft Size
3/8", 10mm
Housing Material
Aluminum, Nickel Finish, Stainless Steel
Max. Operating Speed
10,000 RPM
Electrical
Resolution
1-9000 PPR
Supply Voltage
5V, 7-26 VDC
Interfaces
Open Collector, Open Collector With Pull-Up, Push-Pull, DLD 7272
Environmental
Protection Class (IP)
IP67
Approvals / Certifications
CE, ROHS, cULus, ATEX, IECEx
Operating Temperature Range
-40ºC to 80ºC
Storage Temperature
-40ºC to 100ºC
Environment
Hazardous
Industries
Chemical
Oil & Gas
Pulp & Paper
Steel Mills
Applications
Converting Machinery
Material Handling
Packaging Equipment
Pickling Equipment
Processing Equipment
