    RR25 Rotary Speed Sensor

    Heavy Duty Rate Indicated Designed For Wet, Dirty and Other Extreme Environments

    • Patent-Pending Revolutionary Technology
    • Corrosion Resistant Construction
    • Magnetic Sensor
    • Sealed Electronics
    • Hub Shaft Mounting
    • Corrosion-Resistant Construction
    • Specific Design for Ag Industry

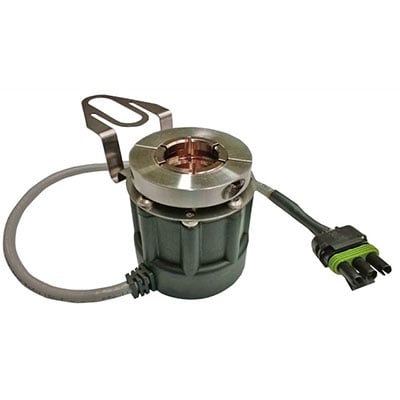

    RR25-rotary-speed-sensor

    Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

    This product has been discontinued and replaced by the AG25 Encorder.
    Please view the AG25 page or consult factory for a replacement.

    • Technical Data
    • Accessories
    Description

    The all-new RR25, is a robust, patent-pending single-channel speed sensor with revolutionary construction. The RR25 is ideal for agricultural, construction and highway equipment applications. The RR25 provides reliable service in the most demanding environments where abrasive dust, corrosive chemicals and shock vibration are commonplace. The hub-shaft design makes it the easiest device available to install with mechanical and electrical toughness that are unmatched in the industry.

    General
    Feedback Type
    Incremental
    Technology
    Magnetic
    Mounting Configuration
    Hubshaft, direct mount over shaft with slotted tether
    Mechanical
    Encoder Size (Flange)
    >2.5"
    Hollow Bore Size
    1" or 1 1/8"
    Housing Material
    Plastic
    Electrical
    Resolution
    180-512 PPR
    Supply Voltage
    5-28VDC
    Interfaces
    Open Collector, Push-Pull
    Environmental
    Protection Class (IP)
    IP67
    Approvals / Certifications
    CE, ROHS
    Operating Temperature Range
    -20ºC to 80ºC
    Storage Temperature
    -40ºC to +85ºC
    Environment
    Non-Hazardous
    Industries
    Agricultural
    Construction
    Highway Equipment
    Off Highway Vehicle
    Applications
    Seeders
    Spreaders
    Planters
    Salt Spreaders
    Augers
    Payout Systems
