ISD25 Intrinsically Safe Encoder

2.5" Flange Intrinsically Safe Encoder Offers Extreme Shock/Vibration Resistance and IP67 Sealing

  • Compact Hubshaft Design
  • Unbreakable Code Disc up to 9,000 PPR
  • ATEX, UL and IECEx Certified for Hazardous Duty Applications
  • IP67 Sealing
  • Anodized Aluminum, Stainless Steel, or Nickel Plated Housing
  • 400G Shock and 20G Vibration Independently Validated

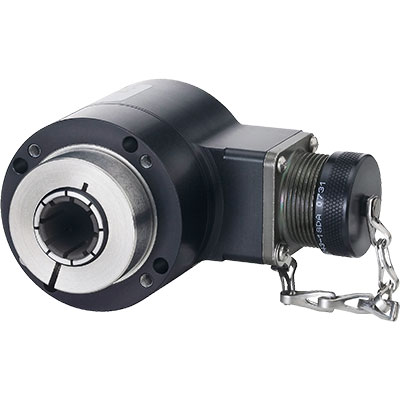

ISD25-intrinsically-safe-encoder

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

The ISD25 encoder is a ruggedized hubshaft encoder with advanced phased array sensing technology. This allows the device to be both accurate and robust. It can be applied to a number of hazardous locations when used in conjunction with an IS barrier. The oversized bearings and improved seals make this a great choice for application where a industrial duty encoder may not last.

General
Feedback Type
Incremental
Technology
Optical
Mounting Configuration
Hubshaft, direct mount over shaft with multiple tethers available
Mechanical
Encoder Size (Flange)
2.5"
Hollow Bore Size
6mm-3/4"
Housing Material
Aluminum, Nickel Finish, Stainless Steel
Max. Operating Speed
6,000 RPM
Electrical
Resolution
1-9000 PPR
Supply Voltage
5VDC, 7-26VDC
Interfaces
Open Collector, Open Collector With Pull-Up, Push-Pull, DLD 7272
Environmental
Protection Class (IP)
IP67
Approvals / Certifications
CE, ROHS, cULus, ATEX, IECEx
Operating Temperature Range
-40ºC to 80ºC
Storage Temperature
-40ºC to +100ºC
Environment
Hazardous
Industries
Oil & Gas
Applications
Top Drives
Iron Roughnecks
Wirelines
Logging
Coil Tubing
Cementing and Fracing/Blenders
