HS35iQ Hollow-shaft Encoder with PulseIQ™ Technology

Revolutionary Fault Indication Combined with Optional Programmable Encoder Output and Legendary Reliability

  • Fault Forewarning for Encoder Signal Quality, Low Voltage, Over/Under Encoder Temperature, Cable Integrity Issues, Coupling Slip/Loose Clamp and Overspeed Detection
  • Fault Notification via Onboard LED Indicators or Dedicated Output to Control System
  • Advanced Diagnostics and Recorded Fault History Accessible Via Software Service Tool
  • This programmable encoder will be set to the default output settings shown on the datasheet. For a standard version with desired output settings determined at time of order, click here to view standard options.

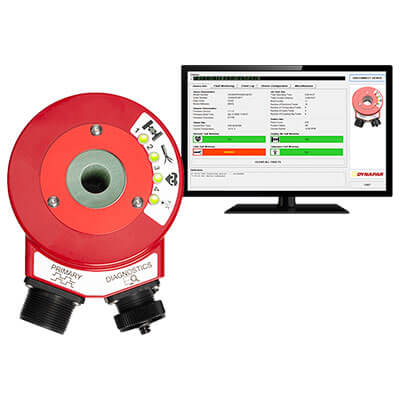

HS35iQ-encoder

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

*1 Fault Output Not Available on Primary Connector for 7 Pin Differential and All M12 Connectors.

*2 Fault Output Available on Primary Connector 7 pin Single Ended, 10 pin MS and Bayonet and cable exit. Always Available on Secondary Diagnostic Connector for All Options.

*3 Cable fault detection available for 7272 differential line drive only (Options: 4, L, 7, P)

*4 For programmable units, output specifications will be set to factory defaults shown in datasheet. Settings can be programmed with PulseIQ Software Tool.
