HDP18 Non-Contact Position Sensor

Compact 18mm OD Non-Contact Sensor Designed to Offer Encoder Resolution in a Prox Sensor Package

  • Non-Contact Magnetic Sensor Uses Target Magnet to Detect Rotation
  • Incremental, Analog & Absolute Outputs Available
  • LED Indicators for Easy Installation and Troubleshooting
  • Sealed & Encapsulated Electronics with IP69K Option
  • Wide Sensing Envelope Tolerant to Misalignment

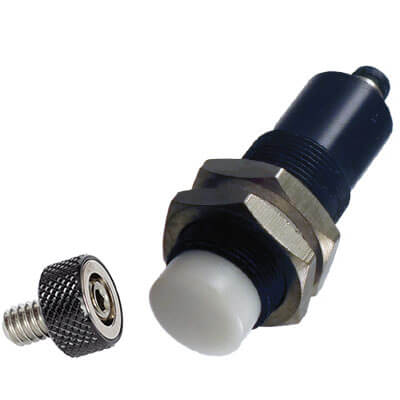

HDP18-non-contact-position-sensor

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

Smallest of the non-contact shaft-less encoders, the HDP18 is ideal for tight mounting constraints with low resolution requirements. A new M8 connector version is now available.

General
Feedback Type
Incremental
Technology
Magnetic
Mounting Configuration
Shaftless mounting with Tubular Prox body and Target Magnet
Mechanical
Encoder Size (Flange)
<2.5"
Hollow Bore Size
1/2"-1 1/2" Bore Nylon Collars
Housing Material
Plastic
Max. Operating Speed
3,000 RPM
Electrical
Resolution
64-256 PPR
Supply Voltage
6-32VDC
Interfaces
Push-Pull, Analog 4-20mA, J1939 CANbus
Environmental
Protection Class (IP)
IP67 or IP69K
Approvals / Certifications
CE, ROHS
Operating Temperature Range
-30ºC to 80ºC
Storage Temperature
-40ºC to 90ºC
Environment
Non-Hazardous
Industries
Factory Automation
Off Highway Vehicle
Applications
Spreaders
Pay-out reels
Augers
Conveyors Lifts
Articulation arms
Crane booms
