HC20 Encoder for Steppers and Servos

2" OD Hollow-Shaft Optical Encoder with Optional Commutation Channels

  • Economical Servomotor Feedback with New Phased Array ASIC
  • High 120ºC Operating Temperature Won’t Limit Motor Performance
  • Up to 2500 PPR Direct-Read with Commutation Channels

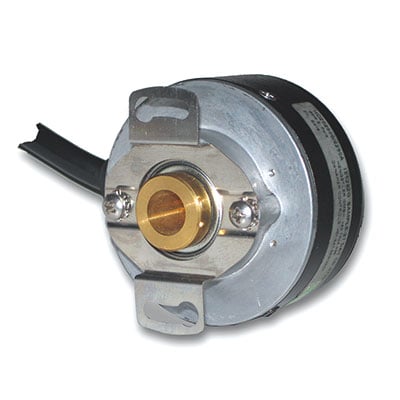

HC20-servo-motor-encoder

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

The HC20 compact 2" package makes it a perfect replacement for many OEM installed commutating encoders. It was designed as a drop in replacement for many configurations of Tamagawa TS52 or OI48.

General
Feedback Type
Incremental
Technology
Optical
Mounting Configuration
Hollow Bore, direct mount over shaft with 2 different tethers available
Mechanical
Encoder Size (Flange)
2.0"
Hollow Bore Size
6mm, 8mm
Housing Material
Aluminum
Max. Operating Speed
2,000 RPM
Electrical
Resolution
500-2500 PPR
Supply Voltage
5VDC
Interfaces
Open Collector, DLD 7272
Environmental
Protection Class (IP)
IP51
Approvals / Certifications
CE, ROHS
Operating Temperature Range
0ºC to 120ºC
Storage Temperature
-40ºC to +100ºC
Environment
Non-Hazardous
Industries
Servo Motor
Applications
Servo Motor
Stepper Motor
PM AC Motor
Switched Reluctance Motor
