HA725 High Resolution Encoder

High Resolution Encoder Offering Direct Read (Non Interpolated) Resolutions Up to 10,000 PPR

  • High, Direct-Read Resolutions up to 10,000 PPR
  • Industry Standard Size 25 (2.5”)
  • IP66 Sealing

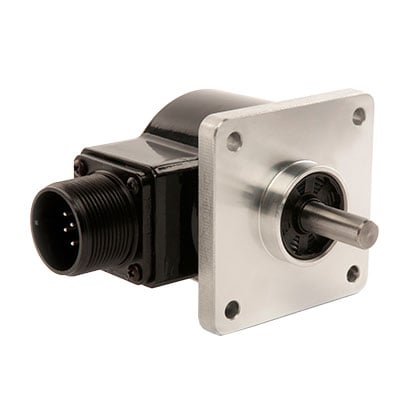

HA725-high-resolution-encoder

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

The Series HA725 encoders features the industry standard size 25 flange mount for easy installation.

General
Feedback Type
Incremental
Technology
Optical
Mounting Configuration
2.5" Square Flange with 4 Thru-Holes
Mechanical
Encoder Size (Flange)
2.5"
Hollow Bore Size
3/8"
Shaft Size
3/8"
Housing Material
Aluminum
Max. Operating Speed
10,000 RPM
Electrical
Resolution
8192-10,000 PPR
Supply Voltage
5V, 10-30 VDC
Interfaces
Push-Pull, DLD 7272
Environmental
Protection Class (IP)
IP66
Approvals / Certifications
CE, ROHS
Operating Temperature Range
0ºC to +70ºC
Storage Temperature
-25ºC to +90ºC
Environment
Non-Hazardous
Industries
Factory Automation
Elevators
Applications
Length Measurements
Motor and Drive Speed Feedback
Cut-to-Length (Textile, Paper, Wood, Metal, Rubber, Plastics, etc.)
PLC’s and Electronic Counters
