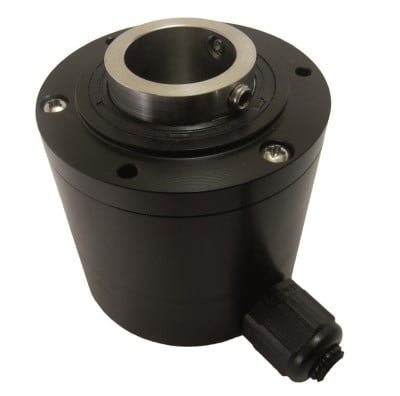

AG25 Heavy Duty Rate Sensor

Incremental Encoder Specially Designed for Agriculture, Precision Farming and OHV Applications

Reliable magnetic sensing technology with resolutions up to 512 PPR
Fully sealed electronics encapsulated with exclusive resin to prevent corrosion
Polymer based housing resistant to sun exposure, fertilizers (including NPK)
No bearings to wear out, the AG25 uses special self-lubricating bushings that are designed for dusty environments
Automotive grade connector options
1” hubshaft mounting configuration for easy installation

Technical Data
Accessories

Description

The AG25 combines the robust and reliable characteristics of an agricultural rate sensor with the accuracy and resolution of an incremental encoder to generate a precise signal in variable rate applications. Together with magnetic sensing technology, no bearings to wear, corrosion resistant housing and fully potted electronics, the AG25 offers reliable performance and improved machine machine uptime for agriculture and OHV equipment manufacturers.

General

Feedback Type

Incremental

Technology

Magnetic

Mounting Configuration

Hubshaft direct mount over shaft with 2 headless screws (stainless steel) with optional flexible tether

Mechanical

Encoder Size (Flange)

>2.5”

Hollow Bore Size

1"

Housing Material

Corrosion resistant polymer

Max. Operating Speed

500 RPM

Electrical

Resolution

180-512 PPR

Supply Voltage

5-26 VDC

Interfaces

Push-Pull

Environmental

Protection Class (IP)

IP67

Approvals / Certifications

ROHS

Operating Temperature Range

-15ºC to 70ºC

Storage Temperature

-20ºC to 70ºC

Environment

Non Hazardous

Technical Information

AG25 Rate Sensor Data Sheet

AG25 Rate Sensor Installation Manual

Drawings

Series AG25 3D Drawing (STP)

Industries

OHV

Mining

Agriculture

Forestry

Applications

Speed Feedback for Precision Farming

Spreaders

Planters

Balers

Steering systems

Harvesters

Loaders
