    ACURO AC61 Absolute Encoder Series

    Robust Absolute Feedback in a 58 mm Format – Built for Industrial Demands

    • Compact construction
    • Ingress protection IP67
    • High resistance to corrosion
    • Highly robust
    • High resolution
    • Various bus connections: SSI, BiSS, Profinet, Profibus, CANopen, CANlayer2, DeviceNet and Interbus
    • Fields of application: Packaging machines for foods Ship equipment (e.g. derick cranes, winches, cable-laying equipment)
    • Offshore applications

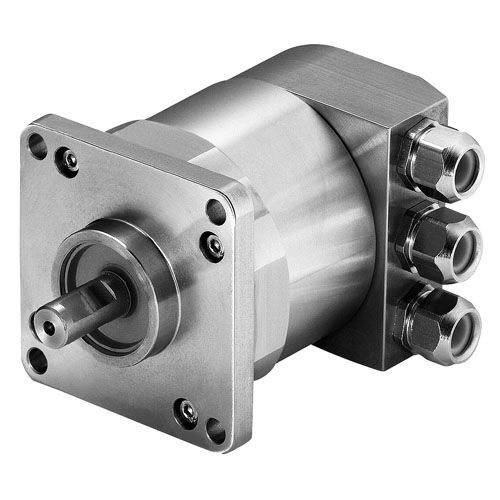

    AC61 Absolute Encoder Image

    Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

    • Technical Data
    • Accessories
    Description

    The AC61 series combines a series of absolute rotary encoders with optical scanning that have been specially designed for use in extreme ambient conditions. The size 58 mm encoders have a stainless-steel housing and are particularly suited to oil and gas applications, marine fittings, the food industry, packaging industry and offshore applications. As single-turn and multi-turn versions, these encoders achieve a resolution of up to 34 bits (22 bits single-turn, 12 bits multi-turn). Connection options are parallel output, EtherCAT, Profinet, Profibus, CANopen, CANlayer2, DeviceNet and Interbus.

    Mechanical
    Housing Diameter
    61.5 mm
    Shaft Size
    9.52 mm, 10 mm
    Shaft Type
    Solid shaft
    Electrical
    Interfaces
    BiSS-B Binary, CANLayer2, CANopen, CANopen stub, DeviceNet, EtherCAT, Parallel Binary, Parallel gray, Profibus DP, Profinet, SSI Binary, SSI Binary (+2048 SinCos 1Vpp), SSI GraySSI Gray (+2048 SinCos 1Vpp), SSI programmable
    Environmental
    Protection Class (IP)
    IP67
    Approvals / Certifications
    CE, c UL us (listed)
    Technical Information
    Series AC61 Data Sheet
