AI25 C1D2 Absolute Encoder

UL Class 1 Division 2 Absolute Encoder Offers Compact Form Factor for Hazardous Applications

  • UL Rated for Class 1 Division 2 Group A, B, C, D Hazardous Applications
  • Compact form factor with Pre-certified 30 Foot PLTC Cable Assembly Included
  • Up to 34 Bits of Total Resolution: 22 Bit ST and 12 Bit Multi-turn
  • Wide Operating Temperature Range -40 to 80ºC
  • 58mm Diameter Encoder with Shafted and Hub Shafted Mounting Options

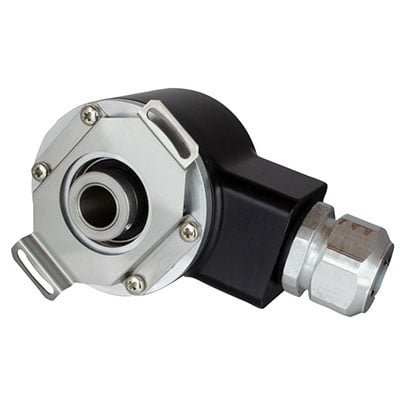

ai25c1d2

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

The AI25 Class 1 Division 2 hazardous series AI25 encoder is ideal for Class 1 Division 2 applications where a zone 1 or division 1 encoder may have previously been specified, offering cost savings in a smaller overall form factor. It features both BiSS and SSI communication protocols and is available in both shafted and hub shafted mounting designs to offer the integration flexibility designers need.

General
Feedback Type
Absolute
Technology
Optical
Mounting Configuration
Synchro Flange, Clamping Flange, Hubshaft with Tether, Square Flange
Mechanical
Encoder Size (Flange)
58mm, 2.5"
Hollow Bore Size
3/8", 6mm and 10mm Shaft, or 3/8", 1/2", 10mm and 12mm Hub bore
Shaft Size
3/8", 6mm, 10mm
Housing Material
Aluminum
Max. Operating Speed
10,000 RPM
Electrical
Resolution
10-22 Bit Single-turn, 12 Bit Multi-turn
Supply Voltage
5VDC, 7-30VDC
Interfaces
SSI, BiSS
Environmental
Protection Class (IP)
IP64, IP66
Approvals / Certifications
CE, ROHS, UL
Operating Temperature Range
-40ºC to 80ºC
Storage Temperature
-40ºC to 100ºC
Environment
Hazardous
Industries
Oil & Gas
Mining
Agriculture
Applications
Position Feedback
Drilling Equipment
Draw works
Pipe Handling
Petro Chemistry
Cranes & Hoists
Winches
