AD25 Absolute Encoder

High Resolution Absolute Encoder with Single-Turn and Multi-Turn Options

  • Special Conical Shaft for Concentric Motor Mounting
  • Up to 22 Bits of Single-turn Absolute Positioning for Smooth Low Speed Motor Performance
  • Integrated On-Board Diagnostics to Monitor Encoder Health

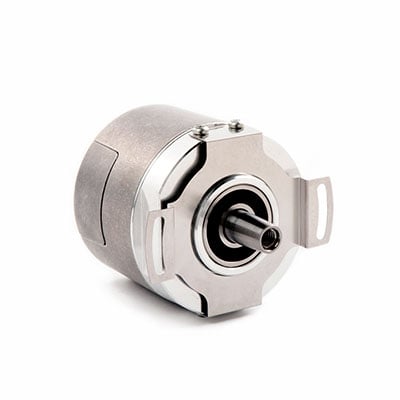

AD25-absolute-encoder

Note: Image is representative of the product series and the exact part number may vary in appearance based on configuration.

  • Technical Data
  • Accessories
Description

Designed for integration into BLDC servo motors allowing digital feedback to be sent over an industrial bus network.

General
Feedback Type
Absolute
Technology
Optical
Mounting Configuration
58mm Servo Mount, Tapered Shaft and Spring Tether
Mechanical
Encoder Size (Flange)
58mm
Hollow Bore Size
10mm (1:10 Taper)
Shaft Size
10 mm (1:10 Taper)
Housing Material
Aluminum
Max. Operating Speed
10,000 RPM
Electrical
Resolution
13 and 22 Bit Single-turn, 12 Bit Multi-turn
Supply Voltage
5VDC
Interfaces
BiSS, SSI+Sin/Cos
Environmental
Protection Class (IP)
IP40
Approvals / Certifications
CE, ROHS
Operating Temperature Range
-15ºC to +120ºC
Storage Temperature
-25ºC to +85ºC
Environment
Non-Hazardous
Industries
Factory Automation
Servo Motor
OEM’s requiring an integral-in-motor absolute encoder that can provide high accuracy digital feedback signals
Applications
Elevators
CNC
Assembly
Positioning
