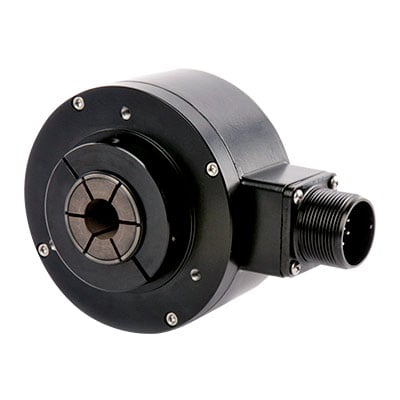

HS35R | Sealed Hollowshaft Encoder

The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing options, and wide -40ºC to 100ºC temperature range, it provides increased reliability and maximize equipment uptime in mill and heavy duty plant environments.

  • Phased Array Sensor for Reliable Signal Output
  • Rugged Design Rated up to 400g Shock and 20G Vibration
  • Unbreakable Code Disc up to 5,000 PPR Resolution
  • Hollow Shaft Sizes up to 1-1/4"
  • Improved Seal Design for Increased Moisture Resistance




Standard Operating Characteristics

Resolution: 1 to 5,000 PPR (pulses per revolution) See Datasheet for Options
Sensing Technology: Incremental, Optical Encoder
Format: Two channel quadrature (AB) with optional Index (Z), and complementary outputs

Mechanical and Environmental

Bore Diameter:

6mm to 28mm, 0.25" to 1.125", electrically isolated
30mm, 1.25" options, not electrically isolated

Enclosure Rating:  IP67 (IP64 at shaft speed above 5000 RPM)
Shock: 400G, 6mSec
Vibration: 5 to 3000 Hz, 20G
Standard Operating Temperature: -40 to +85°C(0 to +70°C) with 4469 line driver
Extended Operating Temperature: -40 to +100°C Option


Input Power: 5-26VDC, 5-15VDC. 80 mA max., not including output loads
Output Options: 7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or source
7273 Open Collector: 40mA, sink max
4469 Differential Line Driver: 100mA, sink or source
High-Power Mosfet Line Driver
