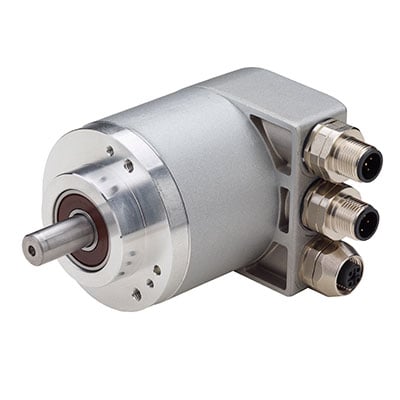

AI25 EtherCAT | Robust Absolute EtherCAT Encoder with Fast Cycle Times

Based on the field proven AI25 absolute encoder package, the AI25 EtherCAT provides the best in class shock and vibration resistance (400G shock, 30G vibration), extremely fast cycle times (62.5 µs) and absolute accuracy of ± 35" / (±0.009º).

  • EtherCat Encoder with Extremely Fast Cycle Times (62.5 µs)
  • Up to 22 Bit Single-Turn Resolution and ± 35" / (±0.009º) Absolute Accuracy
  • Best Shock and Vibration Resistance In Its Class (400G shock, 30G vibration)
  • Device Data: Position, Speed, Temperature, Diagnostic Data, Alarms
  • High Speed 10,000 RPM Continuous Operation (12,000 RPM Short Term)




Specifications

Standard Operating Characteristics

Single-turn Resolution: 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 22 Bits
Multi-turn Resolution: 12 Bit MT (available with 12, 13, 14, 16, 17, 18, 19, 20 Bit ST resolution)
Supply Voltage: 7-30 VDC

 Mechanical and Environmental

Mounting Style: Shafted or Hub-shafted
Shaft Sizes: 6, 8, 10, 12 mm, 3/8"
Hubshaft Sizes: 10, 12, 14mm, 3/8" & 1/2"
Operating Temperature: -40°C to +85°C

Encoder Protocol

Interface EtherCAT CoE, FoE
Device Configuration Options Device Configuration: Resolution, Total Measuring Range, Preset, Offset, Direction, Position, Limits, Scaling, Residual Value Function, Speed Limits, Temperature Limits

Certifications

About-Dynapar-ce rohsul

Applications

The AI25 Absolute Encoder with EtherCAT is ideal for a variety of factory automation applications including:

  • Packaging Machines
  • Injection Molding Machines
  • Wood Processing Machines
  • Assembly and Handling
  • Conveyors
  • Printing and Paper Machines
